FEATURE

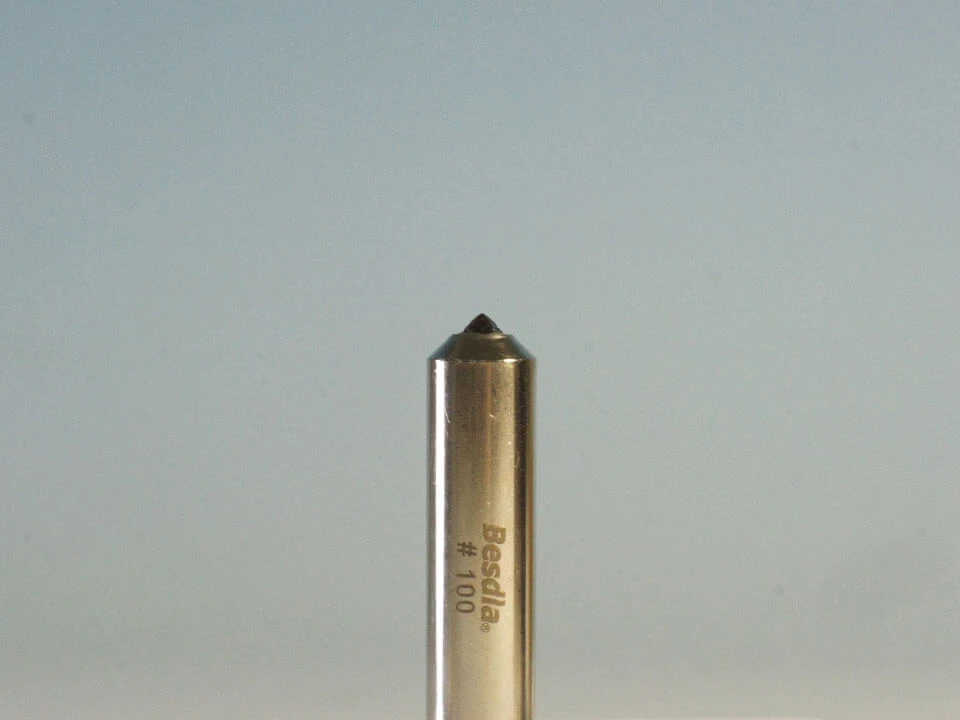

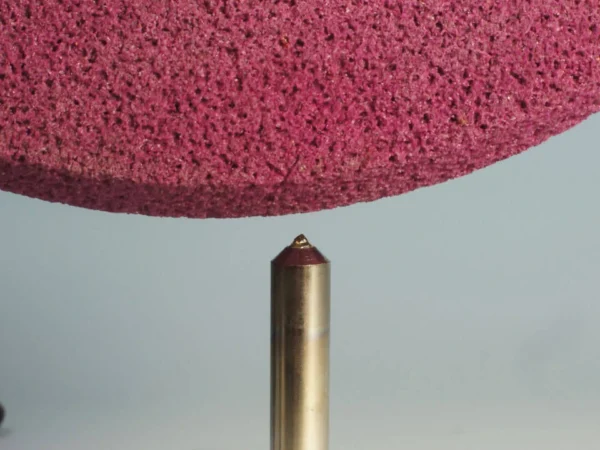

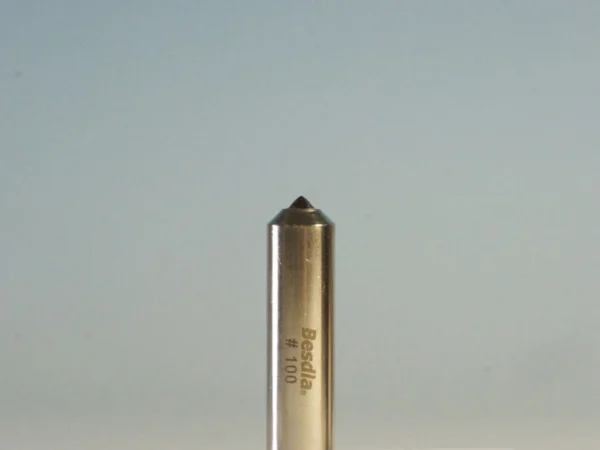

Our diamond dresser is mainly used for the dressing of Conventional wheel (silicon carbide and aluminum oxide wheels).
Very good quality of good shape with 2~3 working points. Size available 0.18 carat to 2.0 carats.

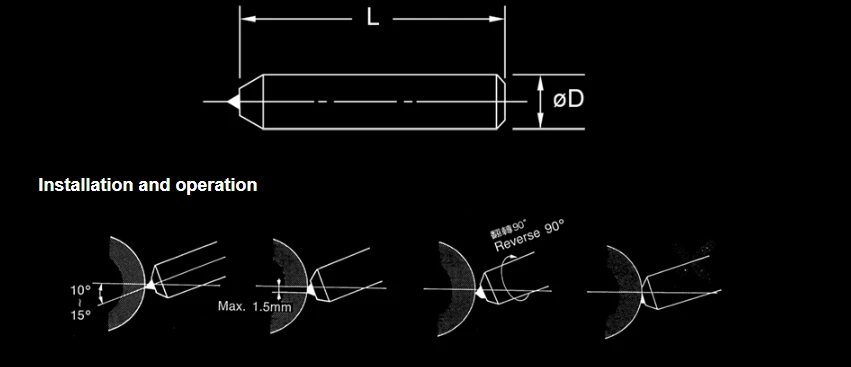

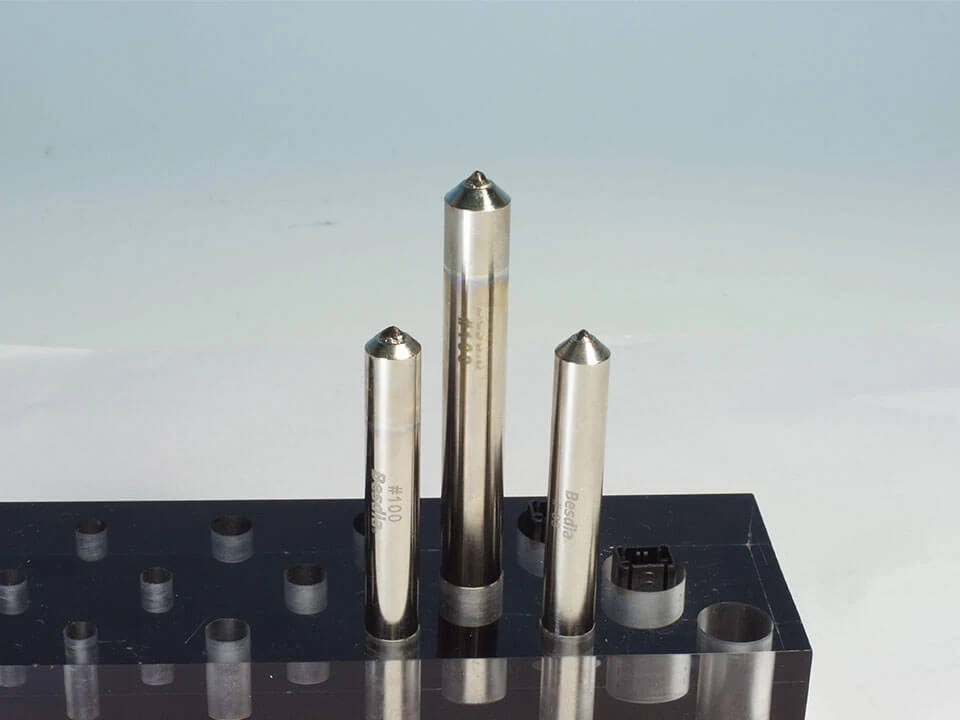

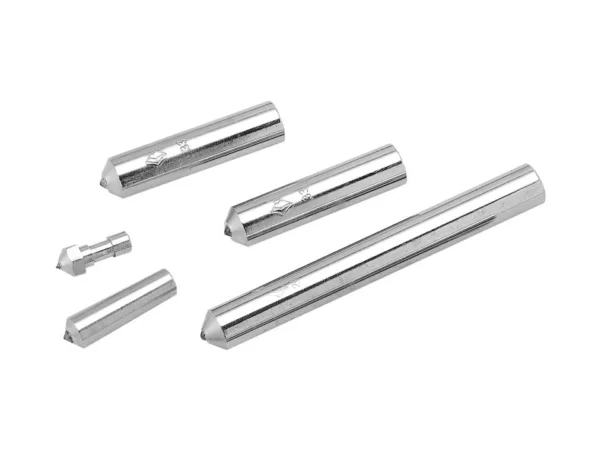

Standard Shank size (mm):
① 12D x 100L ② 10D x 80L ③ 12D x 50L ④ 10D x 50L
| Dia. wt. code | Approx. wt.(cts.) | Order no. | Grinding wheels size(mm) |
| #5 #10 #15 |
0.18 0.20 0.25 |
DS005 DS010 DS015 |
Ø150 x 25 or smaller |
| #20 #25 #33 |
0.35 0.50 0.75 |
DS020 DS025 DS033 |
Ø150 ~ Ø300 x 25 |
| #50 | 1.0 | DS050 | Ø300 ~ Ø450 x 25 ~ 40 |
| #75 | 1.5 | DS075 | Ø450 ~ Ø600 x 50 ~ 100 |
| #100 | 2.0 | DS100 | Ø600 / or larger. |
We specialize in custom diamond tools, delivering bespoke products perfectly matched to your needs.
