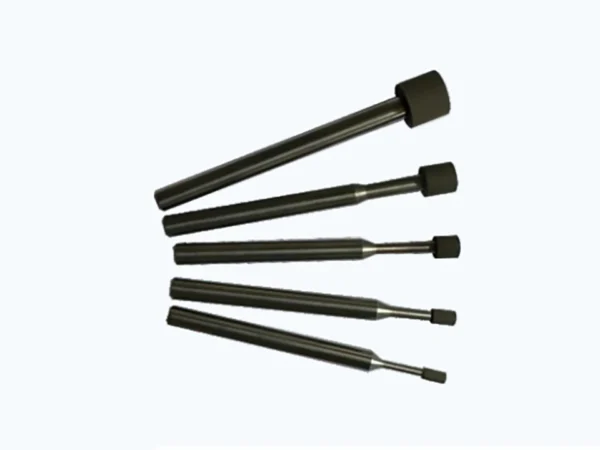

Resinoid Cbn、Sdc Internal Points Are Used For Internal Grinding And Jig Grinding Of High Speed Steel And Hardened Alloy Steel.
Specifications:
unit：mm

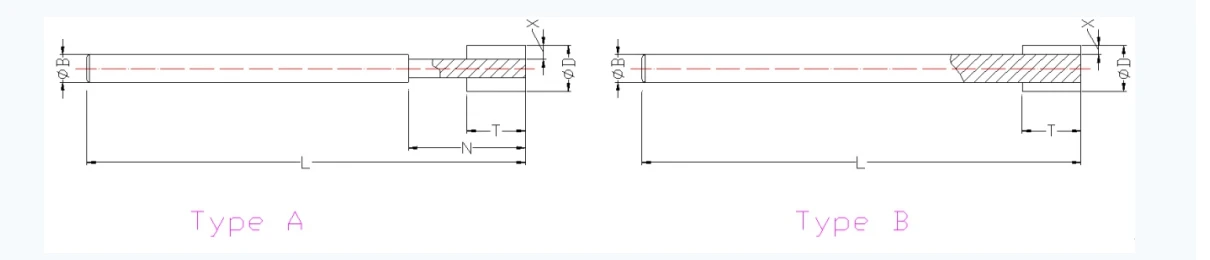

| Order no | Type | ΦD | T | X | N | L | ΦB | Particle size
CBN、SDC |
| RIB-6030 | A | 3 | 6 | – | 17 | 80 | 6 | 100-1000# |
| RIB-6040 | A | 4 | 6 | – | 17 | 80 | 6 | 100-1000# |
| RIB-6050 | A | 5 | 6 | – | 17 | 80 | 6 | 100-1000# |
| RIB-6060 | A | 6 | 6 | – | 20 | 80 | 6 | 100-1000# |
| RIB-6080 | A | 8 | 8 | – | 20 | 80 | 6 | 100-1000# |
| RIB-6100 | A | 10 | 10 | – | – | 80 | 6 | 100-1000# |
| RIB-6120 | B | 12 | 10 | – | – | 80 | 6 | 100-1000# |
| RIB-6140 | B | 14 | 10 | – | – | 80 | 6 | 100-1000# |
| RIB-6160 | B | 16 | 10 | – | – | 80 | 6 | 100-1000# |
| RIB-6180 | B | 18 | 10 | – | – | 80 | 6 | 100-1000# |
| RIB-6200 | B | 20 | 10 | – | – | 80 | 6 | 100-1000# |
For grain sizes other than the standard, please specify the order.
We specialize in custom diamond tools, delivering bespoke products perfectly matched to your needs.
