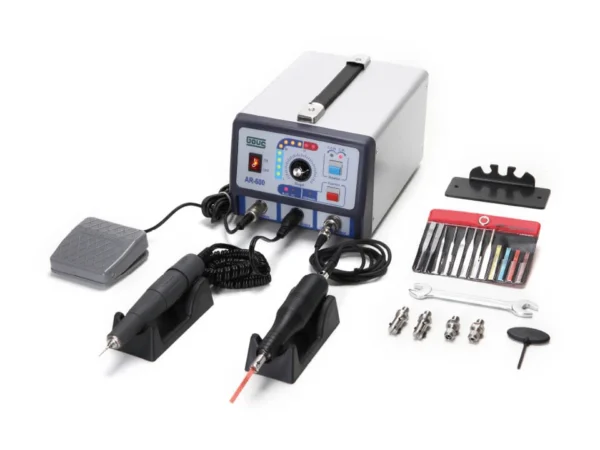

AR-600 Triple Function Practical Type Ultrasonic Lapping Machine

FEATURE

AR-600 ultrasonic polishing equipment has a high-efficiency microprocessor design that gives the machine a more steady and effective performance.

● Our ultrasonic polishing equipment combines the ultrasonic, brush DC and brushless DC output in one package. You can adapt most of the handpieces for your polishing work.

● Brushless DC output power is 100 watts and brush DC output power is 60 watts.Max. 45 watts Ultrasonic output makes polishing job more effective.

● The advantage of Brushless handpiece are:high speed, high torque, longer tool life, and low noise, no need to change carbon brush no dust cause by carbon brush worn out.

Power Controller
Main supply AC-90V ~ 250V, 50/60 Hz
Ultrasonic output 45watts
Vibration frequency 18 ~ 26 kHz
Stroke amplitude 3 ~ 40 μm
Frequency adjustment auto-tracing
Power consumption 100 watts
Fuse 2A time-lag type
Output of DC motor 5 ~ 30V
Power of DC brush Max. 60 watts
Power of DC brushless Max. 100 watts
Dimensions 170 x 260 x 140mm
Weight 2.0 kg



Handpiece
Ultrasonic handpiece GS-H09
Dimensions Ø33 x 146mm
Weight 254g



Rotary handpiece
Brush handpiece U-Lap 35
Brushless handpiece

Note : ●  Optional accessory

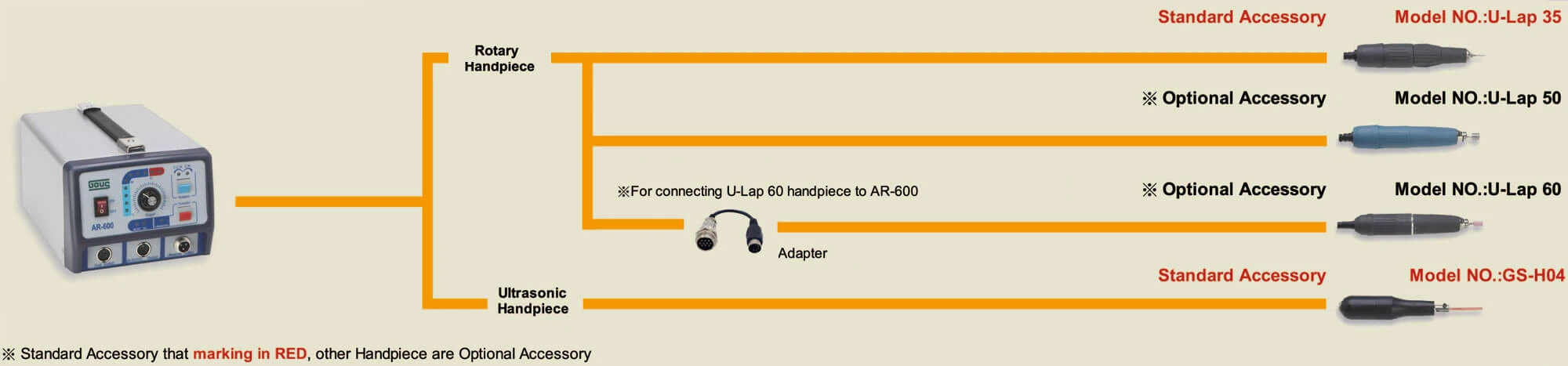

Attachment Handpiece for AR-600
