FEATURE

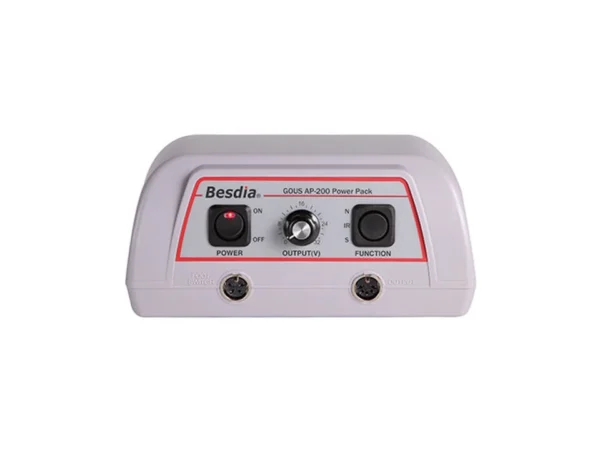

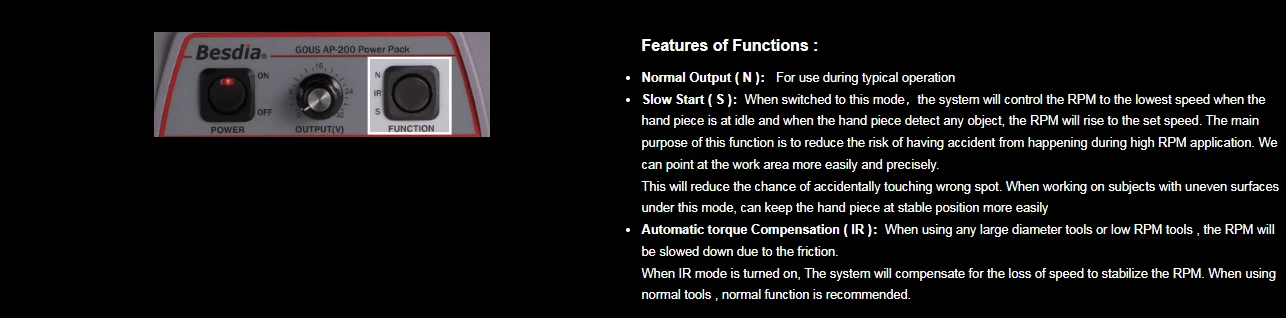

AP-200 is a more advanced Power Controller for hand piece with brush. That provide there different output functions: Normal, slow-start, and self torque compensation.
● Overload Protection: The system will be shut down when an overload occurs to protect the controller and hand piece from damage.
● Conventional On-Off pedal switch and Adjustable pedalswitch are optional.
| Main supply | AC-90V ~ 250V, 50/60 Hz |
| Power of DC brush | 70 watt |
| Voltage output of DC brus | 5 ~ 32V |
| Max Overload Current Protection | 3A |
| Fuse | 2A |
| Dimension | 192 x 156 x 98mm (800g) |
